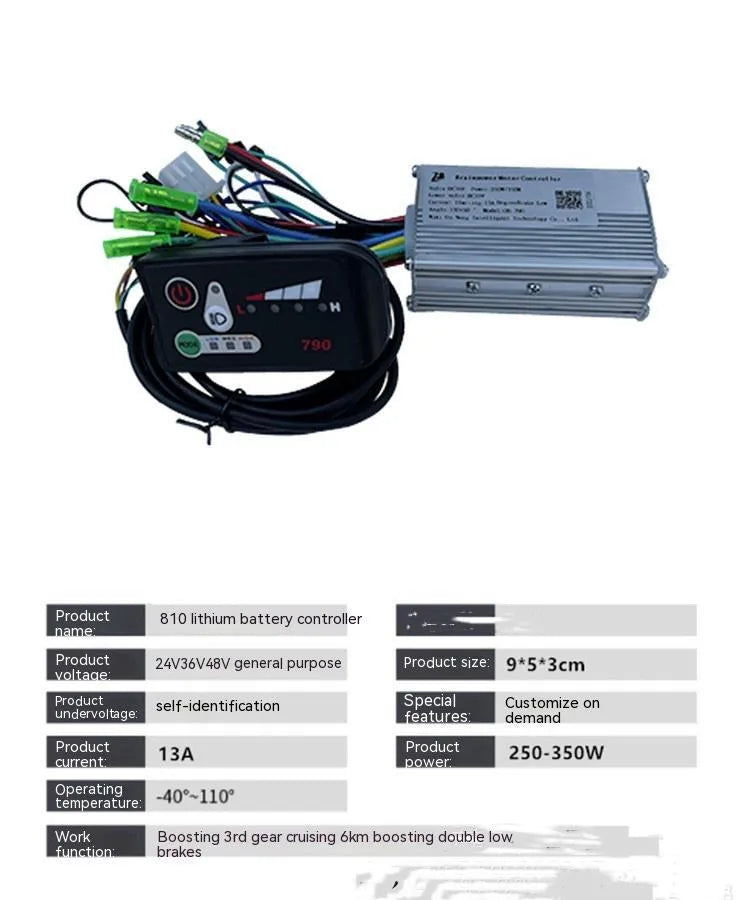

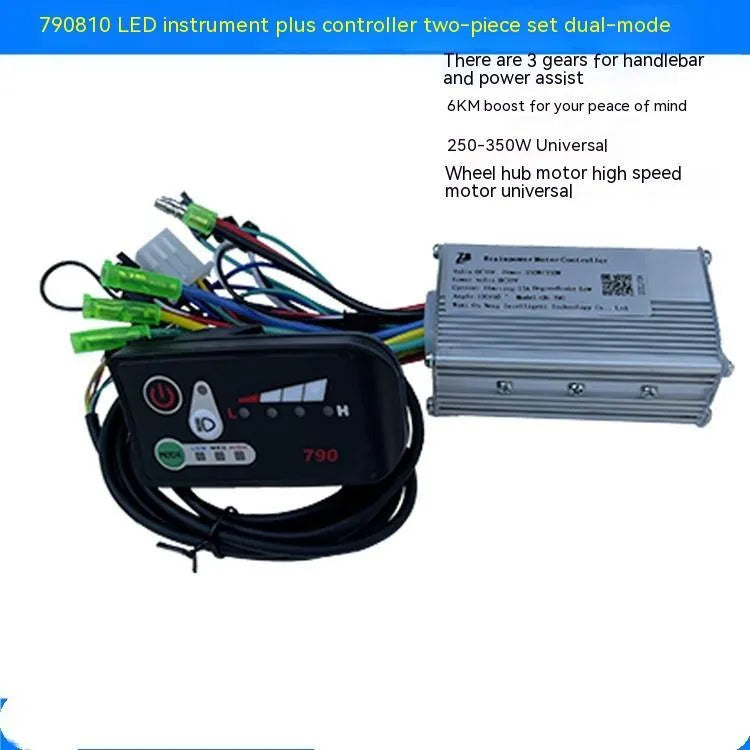

790 Mignon Maimai 6-Tube Controller for 24V 36V 48V Electric Bicycles and Scooters

This 6-tube motor controller serves as the central electronic command unit for electric bicycles and scooters, managing power delivery between the battery and the motor. Designed for the 790 Mignon Maimai model, it handles systems rated from 250W to 350W, covering a common power range for personal electric mobility. Its key flexibility comes from supporting three standard operating voltages: 24V, 36V, and 48V. This multi-voltage compatibility means it can be fitted to various e-bike and scooter models without being locked to a single battery configuration, providing a practical replacement or upgrade component for DIY enthusiasts and repair shops.

Features and Construction

The controller's design focuses on compatibility and adjustable protection for different electric vehicle setups. Its 6-tube construction refers to the internal electronic components, typically MOSFETs, that handle the power switching required for a brushless motor. The unit is a compact module, which aids installation in the often confined spaces of electric bicycle frames or scooter decks.

Material and Build

The controller houses a printed circuit board (PCB) populated with capacitors, resistors, a microcontroller, and the six power transistors (tubes). These components are contained within a housing, the specific material of which is not detailed but is typically aluminium for heat dissipation or a durable plastic. The build is centred around reliably switching power for motors up to 350W, with the circuitry configured for the specific control algorithm of the 790 Mignon Maimai design. No claims about premium materials or specialised coatings are made; the value is in its stated electrical specifications and compatibility.

Size and Practical Fit

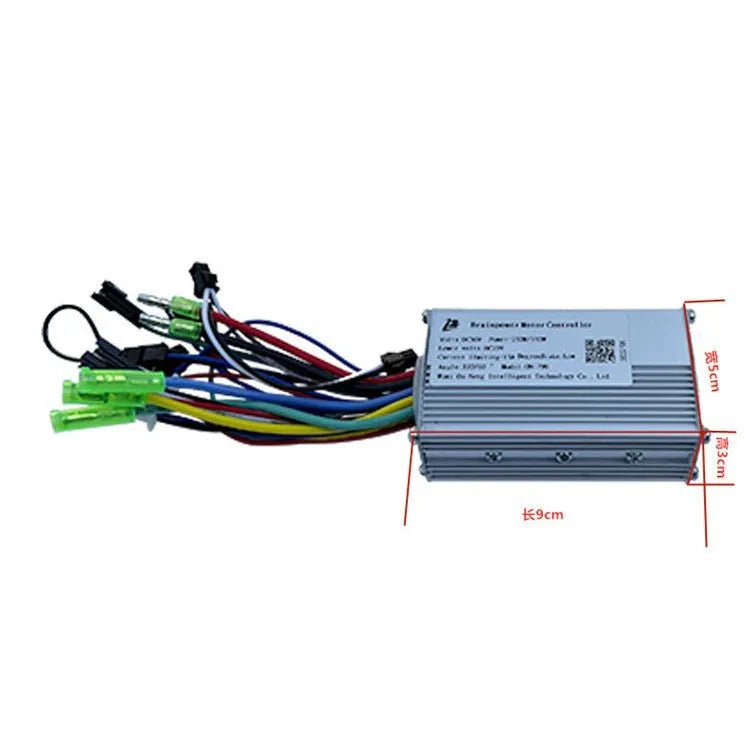

With dimensions of 9 cm in length, 5 cm in width, and 3 cm in height, the controller is a relatively compact unit. This size makes it suitable for integration into existing electric bicycle and scooter frames where space can be limited. When replacing a faulty controller or upgrading a system, these measurements allow users to check physical fitment before purchase. The size is a practical consideration for installation, not a marketing feature about miniaturisation.

Uses and Placement

This controller is intended for direct use in electric-powered two-wheeled vehicles. Its application is defined by its technical specifications, not by broad lifestyle claims. It functions as the intermediary that interprets throttle input and delivers precisely timed power pulses to the motor.

Event or Professional Use

For professional repair technicians or mobility service centres, this controller acts as a replacement part for specific e-bike and scooter models that use the 790 Mignon Maimai system. Its multi-voltage support means a workshop can stock one controller SKU for repairs across different voltage platforms (24V, 36V, 48V), simplifying inventory. The adjustable undervoltage protection is a practical feature for technicians dealing with diverse customer batteries, allowing them to set protection thresholds correctly for each chemistry to prevent battery damage.

Everyday Home Use

For the home DIY enthusiast or e-bike owner, this controller is a component for repairing a broken scooter or bicycle, or for a custom build project. The clear compatibility with common brushless motor types (toothed and high-speed) and a power range up to 350W covers many entry-level and mid-range personal electric vehicles. The user must have basic technical knowledge to connect the motor phase wires, battery leads, throttle, and possibly brake cut-off sensors, following their vehicle's existing wiring diagram.

Benefits and Buying Value

The value of this controller lies in its stated compatibility and the practical function it provides within an electric drive system. It is a functional component, not a lifestyle accessory.

Reuse and Low Maintenance

As an electronic module, the controller itself requires no routine maintenance. Its value in reuse contexts is high: it can return a non-functional e-bike or scooter to service, extending the vehicle's lifespan. The ability to adjust its undervoltage protection allows it to be matched to older or newer battery packs, adapting to changes in the vehicle's power source over time. This adjustability can prevent premature battery shutdown and deep discharge, potentially prolonging the usable life of the connected battery.

Why Choose This Product

This controller is chosen for its specific technical match to a system. The primary reasons are its confirmed 790 Mignon Maimai model type, its support for the three most common low-voltage DC systems (24V, 36V, 48V), and its rated power handling of 250-350W. The adjustable battery protection is a functional differentiator for users employing less common battery chemistries like lithium iron phosphate (LiFePO4). The choice is based on these concrete specifications matching a project's or repair's requirements, not on subjective claims of performance or quality.
