Owon HDS272 Handheld Digital Oscilloscope 70MHz Automotive Repair Tool

The Owon HDS272 represents a practical solution for technicians requiring reliable signal analysis without the bulk of traditional benchtop equipment. Designed for automotive repair and general electronics maintenance, this handheld unit provides a 70MHz bandwidth capable of handling a wide range of diagnostic tasks. Its ability to capture 10,000 waveforms per second ensures that even fleeting anomalies are recorded for review. Whether working in a workshop or on-site at a vehicle location, the included portable bag and comprehensive accessory set allow for immediate operation upon arrival.

Technical Performance Specifications

Understanding the core specifications of this digital oscilloscope helps users match the tool to their specific diagnostic requirements. The combination of bandwidth and sampling speed defines the clarity and accuracy of the displayed signals.

Bandwidth and Sampling Rate

With a bandwidth range of 40 to 70MHz, this oscilloscope effectively measures signals common in automotive sensors, audio equipment, and industrial control systems. The 250MSa/s sampling rate provides sufficient resolution to reconstruct waveform details, ensuring that rise times and pulse widths are displayed accurately. This performance level supports detailed analysis of complex signals found in modern electronic control units.

Waveform Capture Capability

A critical feature for troubleshooting intermittent faults is the waveform capture rate of 10,000 wfms/s. This high speed significantly increases the probability of catching rare glitches or dropout events that slower units might miss. Technicians can monitor systems for extended periods with confidence that transient errors will be captured and displayed on the screen for immediate diagnosis.

Physical Dimensions and Portability

The device measures 198mm in length, 38mm in thickness, and 96mm in height, making it exceptionally slim and easy to hold during extended use. These dimensions allow the unit to fit into tight engine bays or crowded electrical cabinets where larger scopes cannot reach. The compact size does not compromise the screen visibility or control layout, maintaining usability in constrained environments.

Complete Accessory Configuration

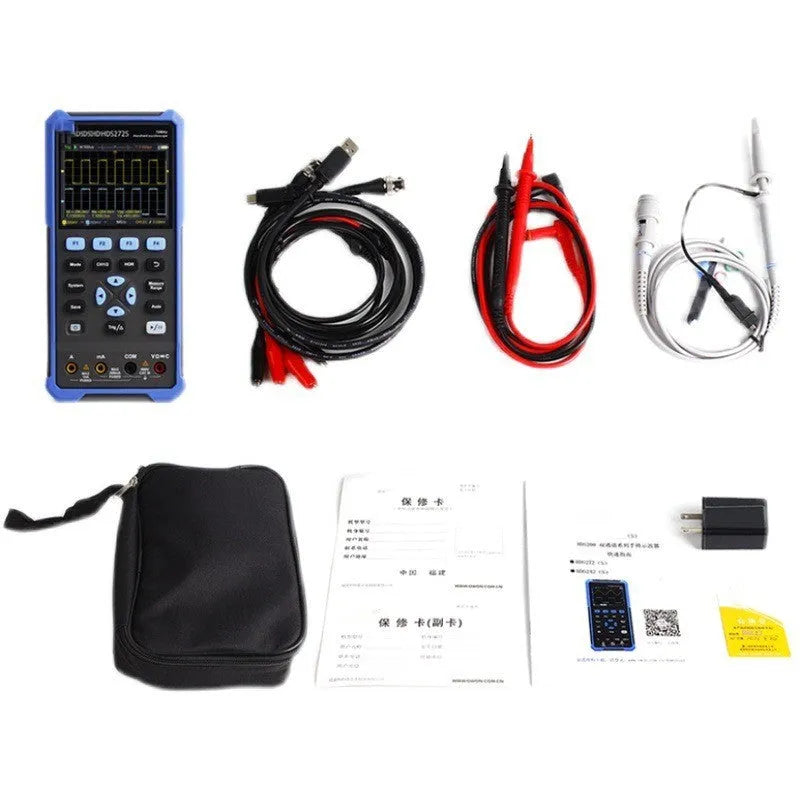

This product is supplied as a comprehensive kit, eliminating the need to purchase additional probes or cables separately. The inclusion of specific tools ensures the oscilloscope is ready for diverse testing scenarios right out of the box.

Probing and Connection Tools

The package includes a dedicated oscilloscope probe pen for standard signal acquisition and a BNC turn crocodile clip for connecting to larger terminals or ground points. A correction pen is also provided to adjust probe compensation, ensuring measurement accuracy across different frequency ranges. These tools cover the majority of basic to intermediate diagnostic tasks encountered in auto repair.

Power and Data Transfer

An adapter is included to power the device or charge its internal battery, allowing for extended field operation. The supplied USB cable facilitates data transfer and potential firmware updates, keeping the instrument current with the latest features. A multimeter pen is also part of the set, adding versatility for basic voltage and continuity checks alongside waveform analysis.

Practical Applications and Value

The Owon HDS272 is engineered to solve specific problems faced by mobile technicians and hobbyists who need dependable performance in a portable format. Its design prioritises functional utility over unnecessary complexity.

Automotive and Field Diagnostics

For auto repair professionals, the ability to carry a capable oscilloscope in a portable bag means faster diagnosis of engine sensor issues, ignition problems, and communication bus errors. The rugged construction supports use in workshop environments where tools may be subject to minor impacts or dust. The clear display allows for quick verification of signal integrity without needing to return to a fixed workstation.

Cost-Effective Testing Solution

By combining essential features like high capture rates and adequate bandwidth with a full set of accessories, this unit offers significant value. Users avoid the extra costs often associated with bundling probes and cases separately. The straightforward interface reduces the learning curve for those transitioning from analogue meters to digital waveform analysis, making it a sound investment for expanding diagnostic capabilities.
